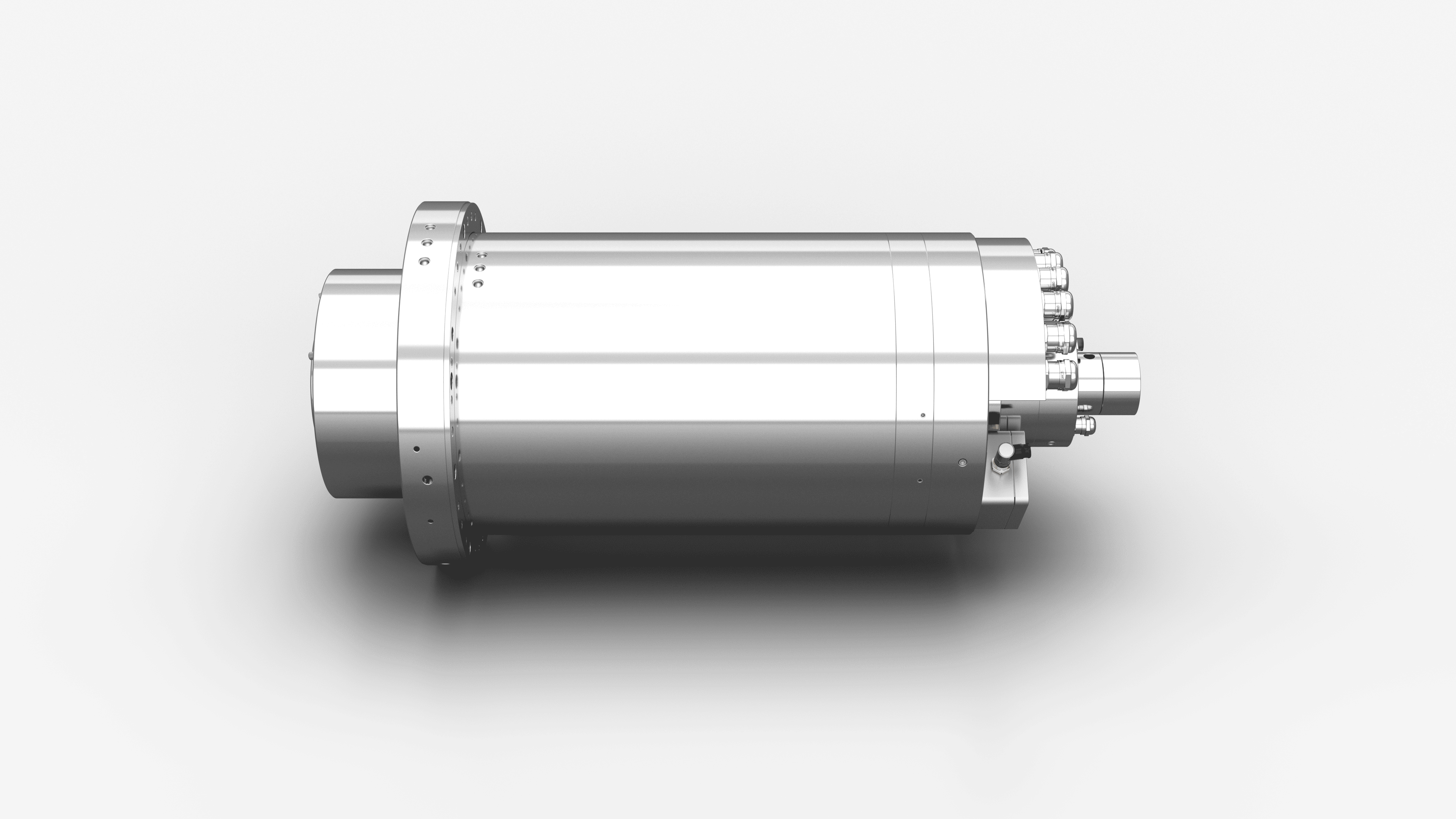

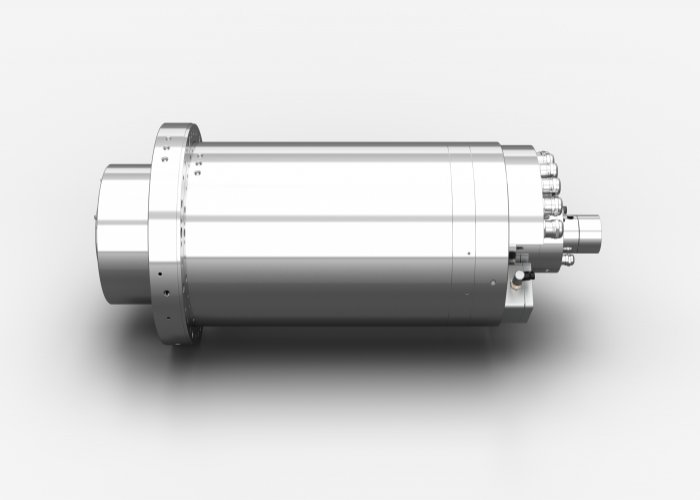

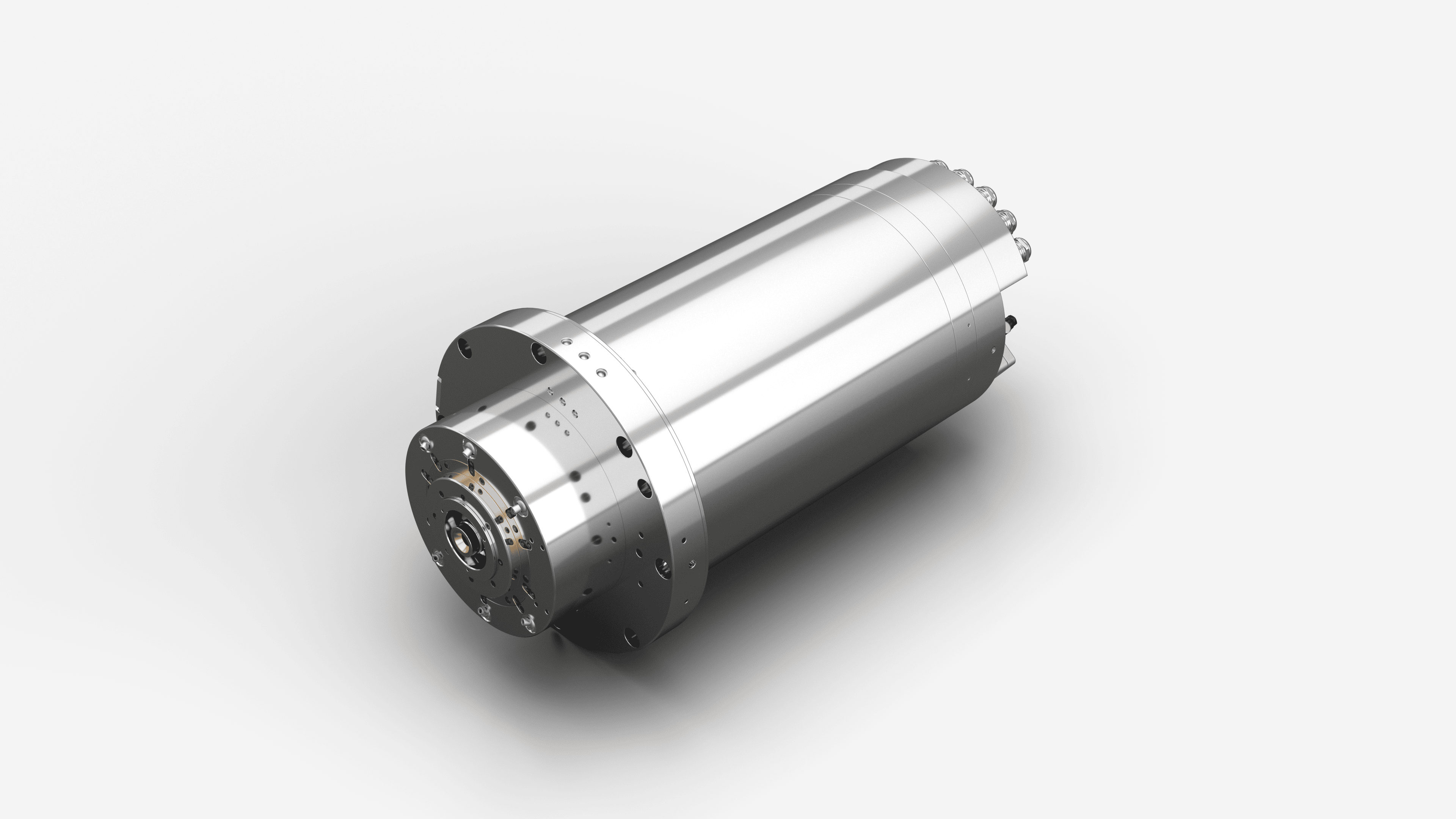

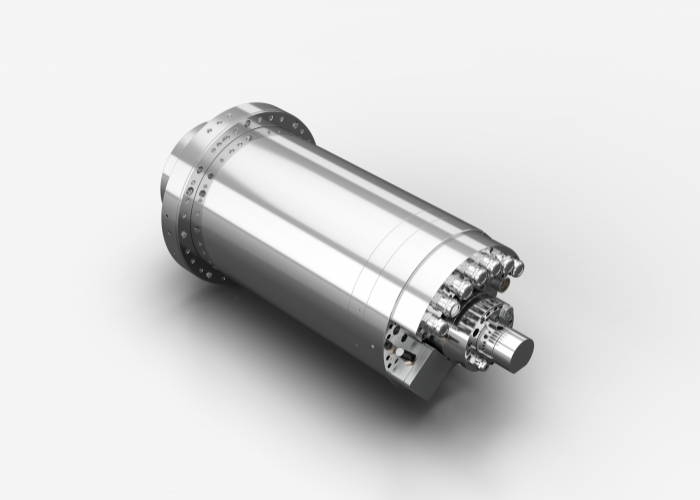

OMC 220 - S30
Type of processing
Milling Materials
TECHNICAL FEATURES
| Shape and dimensions | Cylindrical 220 |
|---|---|
| Tool attachment | HSK-A 63 |
| Speed Max (rpm) | 30000 |
| Lubrication | Air - Oil |
| Power S1 / S6 (kW) | 100 / 135 |
| Torque S1 / S6 (Nm) | 60 / 83 |
| Motor | Synchronous |
| Cooling | Liquid |
| Tool changer | Automatic |
| Cylinder | Hydraulic |
OPTIONAL
| Rotary joint | Yes |
|---|---|
| Encoder | On request |
| Vibration sensor | On request |
| Elongation sensor | On request |
